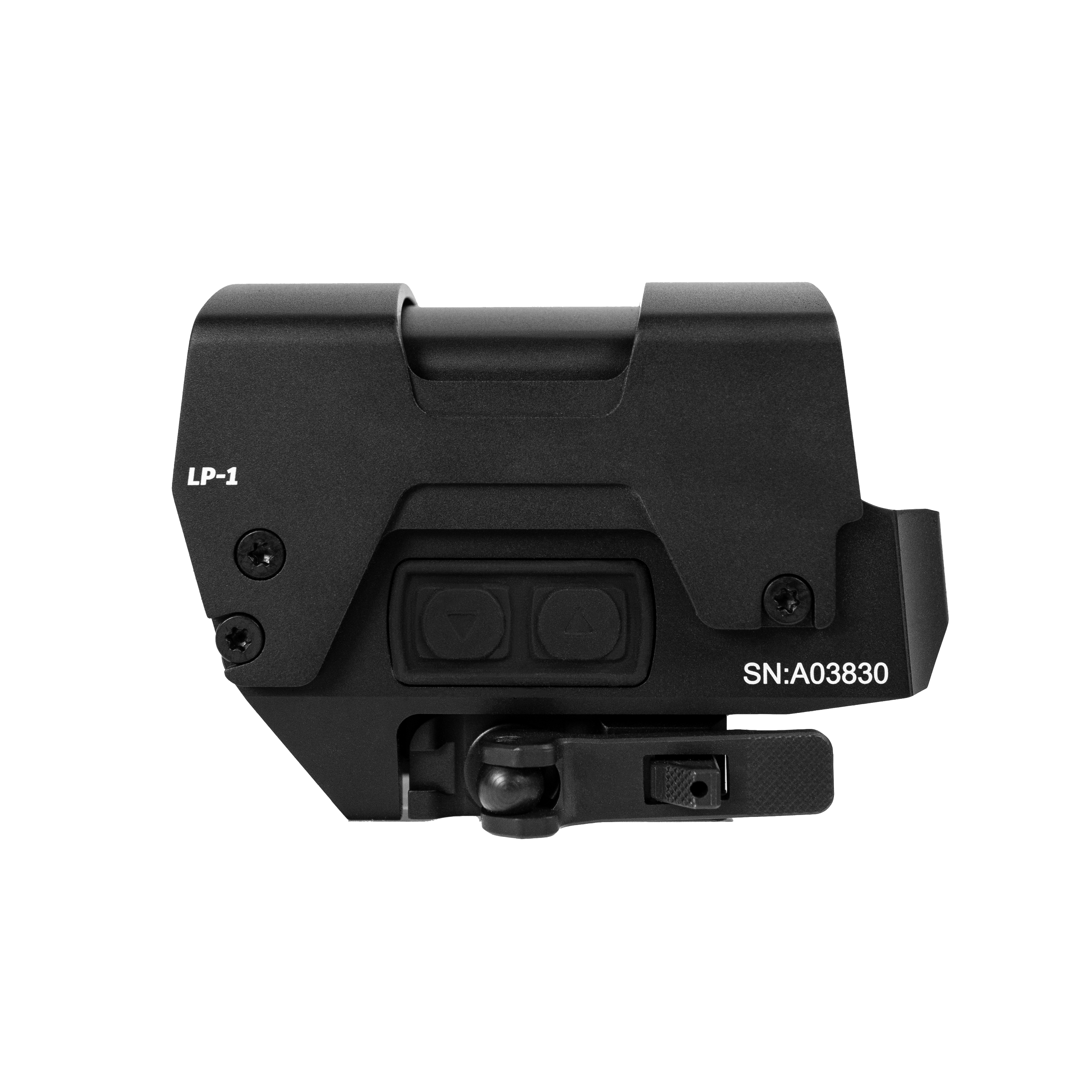

lp-1 left face.png
LP-1 Chin Up No Background.png
LP-1 Front No Background.png
LP-1 Back no Background.png

overview

The Promethean LP-1 was developed under the L&S Central Ohio Research Division [CXRD]™ to meet the uncompromising reliability standards of professional end user teams. An overbuilt 7075-T6 housing is paired with a user-replaceable crumple hood that surrounds crystal-clear Japanese glass and patent-pending AuraWake™ circuitry.

aurawake

™

AuraWake™ is C[X]RD™'s take on a safer implementation of shake-to-wake designs seen in the industry today. Many optics will auto shut off after a set number of hours to conserve runtime. Motion sensors are commonly utilized in optics to activate them once the weapon is picked up, but these devices may exhibit unreliability after heavy impact testing, hence why C[X]RD™ is proud to implement AuraWake™, a new partial shake-to-wake system that ties the motion sensor only to the circuit of the 65-MOA ring.

Simply put, after 5 minutes of non use, the LP-1’s outer CQB ring will “sleep,” yet maintain the 2-MOA dot on at all times. This provides a constant, action-ready aiming reference that cannot be interfered with upon motion sensor failure, while significantly increasing runtime. It’s the best of both worlds, and is available for institutional adoption now.

specs

  • CNC-machined 7075-T6 aluminum housing, hard-coat anodized to Type III MIL-A-8625

  • Protective 6061-T6 extruded aluminum “crumple” hood

  • Weight: 12.6 oz. with hood

  • Unit Size (LxWxH): 95mm x 57mm x 65mm

  • Large window for fast target acquisition (1.37″ x 1.04″). 90 degree vertical ocular lens to diffuse environmental glare

  • Lower 1/3rd (1.70″) optical axis height to better align with magnifier/mount ecosystems

  • 0.5-MOA adjustment for windage & elevation

  • User-configurable circle/dot & red dot reticles (2-MOA dot, 65-MOA ring + dot, 65-MOA ring only)

  • Powered by a single CR123A cell for 150,000 continuous runtime with 2-MOA dot reticle (Setting 5/10)

  • Parallax-free LED, unlimited eye relief

  • Always on unless manually turned off; “set & forget” design

  • Seven (7) daytime settings, three (3) night vision settings

  • IPX8 waterproof rating with drain ports to prevent pooling near lenses

  • Two step Quick-Detach mount that returns to zero

  • Adaptable to 1913 rails

  • ID grid on crumple hood for various identifiers

  • Lifetime transferable warranty
