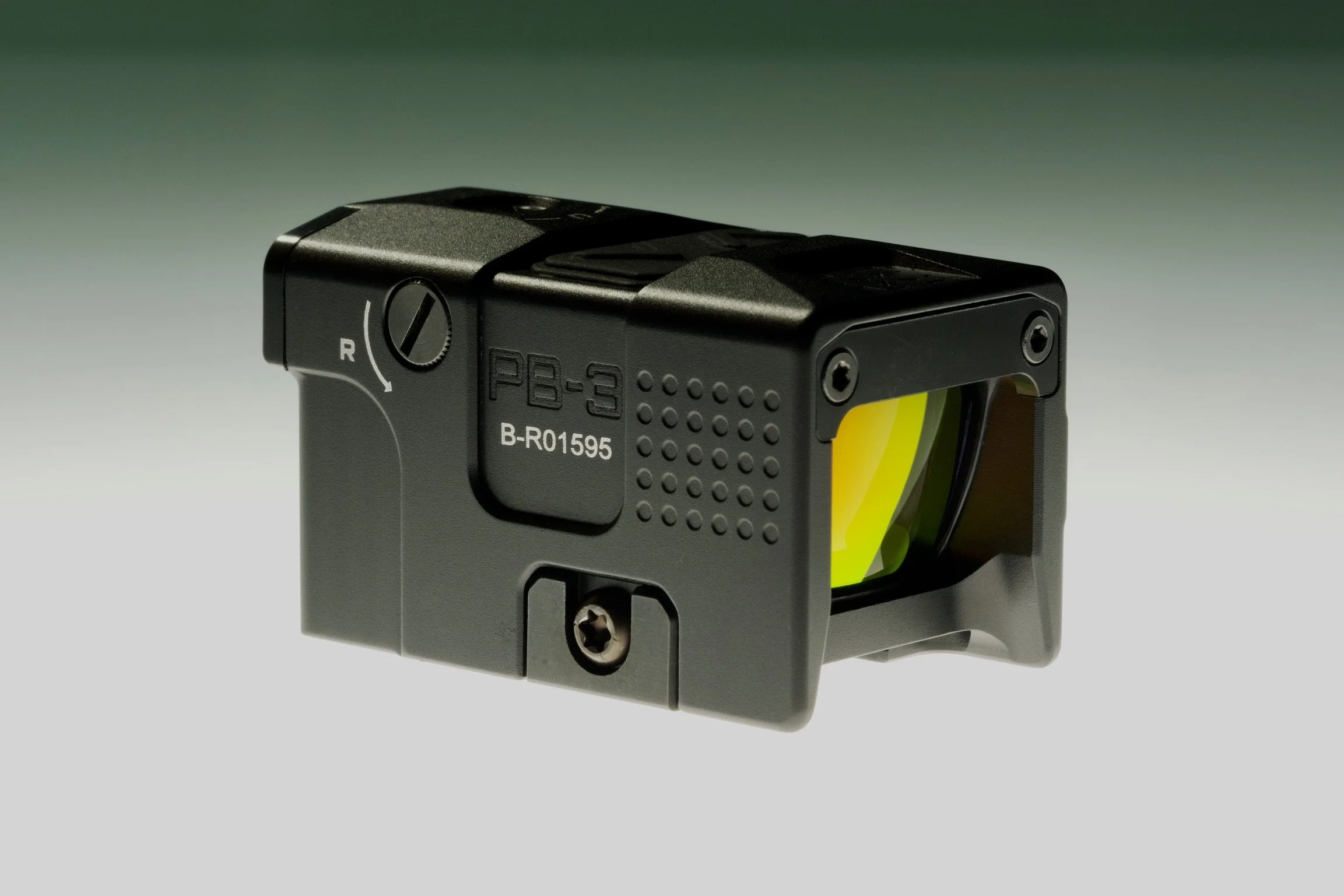

pandora pb-3
overview
The PB-3 is our solution to a large window, enclosed emitter, durable red dot optic utilizing the ACRO® P2 footprint. Like the Promethean LP-1, the Pandora’s Box is machined from 7075-T6 aluminum and is hard-coat anodized to Type III MIL-A-8625.
The PB-3 was designed with a standoff around the objective lens for one-handed pistol slide manipulation. Similarly, the ocular lens has an offset to protect glass during pistol/rifle retraction through barriers. A beveled leading edge of the battery compartment assists with re-holstering, and sealing plates affix the lenses into the housing for added glass security under impact and recoil vectors. The PB-3 has a 30% larger window than industry competitors (21x17mm), and is IPX8 rated for 90 minutes of submersion at a depth of 10m.
aurawake
AuraWake™ is CORD's patented, reliable utilization of shake-to-wake technology. Competitor shake-to-wake optics will auto shut-off after a set number of hours to conserve runtime, and a motion sensor reactivates the reticle once movement is detected. However, motion sensors may exhibit unreliability if damaged during impact, fostering a subsequent equipment failure upon weapon deployment.
To prevent catastrophic aiming system failure, CORD Instruments is proud to implement AuraWake™, a new partial shake-to-wake system that ties the motion sensor only to the circuit of the 32-MOA ring.
Following 5 minutes of non use, the PB-3’s outer CQB ring will “sleep,” yet maintain the 3-MOA dot on at all times. This provides a constant, action-ready aiming reference that cannot be interfered with upon motion sensor failure, while significantly increasing runtime.
7075-T6 housing.
Sealing plates to sandwich lenses into housing for added security.
Serrations on housing for added grip.
Standoff around objective lens for one handed pistol slide manipulation.
Ocular offset to protect glass during pistol/rifle retraction through barriers.
Beveled leading edge of battery compartment to assist re-holstering.
ID grid on housing for various identifiers
IPX8 rated to 10m submersion (90 minutes).
Recessed brightness controls.
3V CR2032 - capable of 30,000+ hr runtime on various daytime settings.
7 daylight settings, 3 NV settings.
3/32 MOA dot/ring reticle.
Three built-in reticles paired with our Patent Pending Aurawake Technology.
ACRO® P2 footprint.
